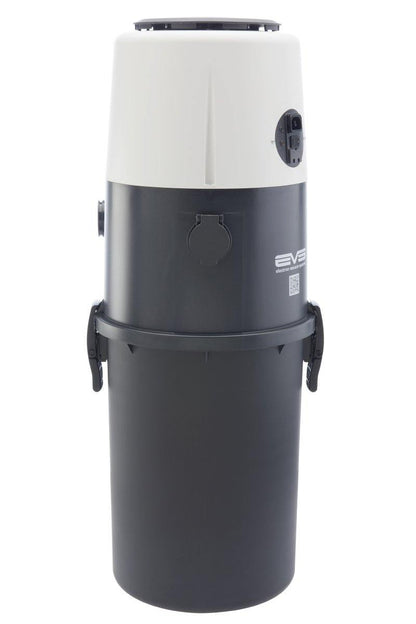

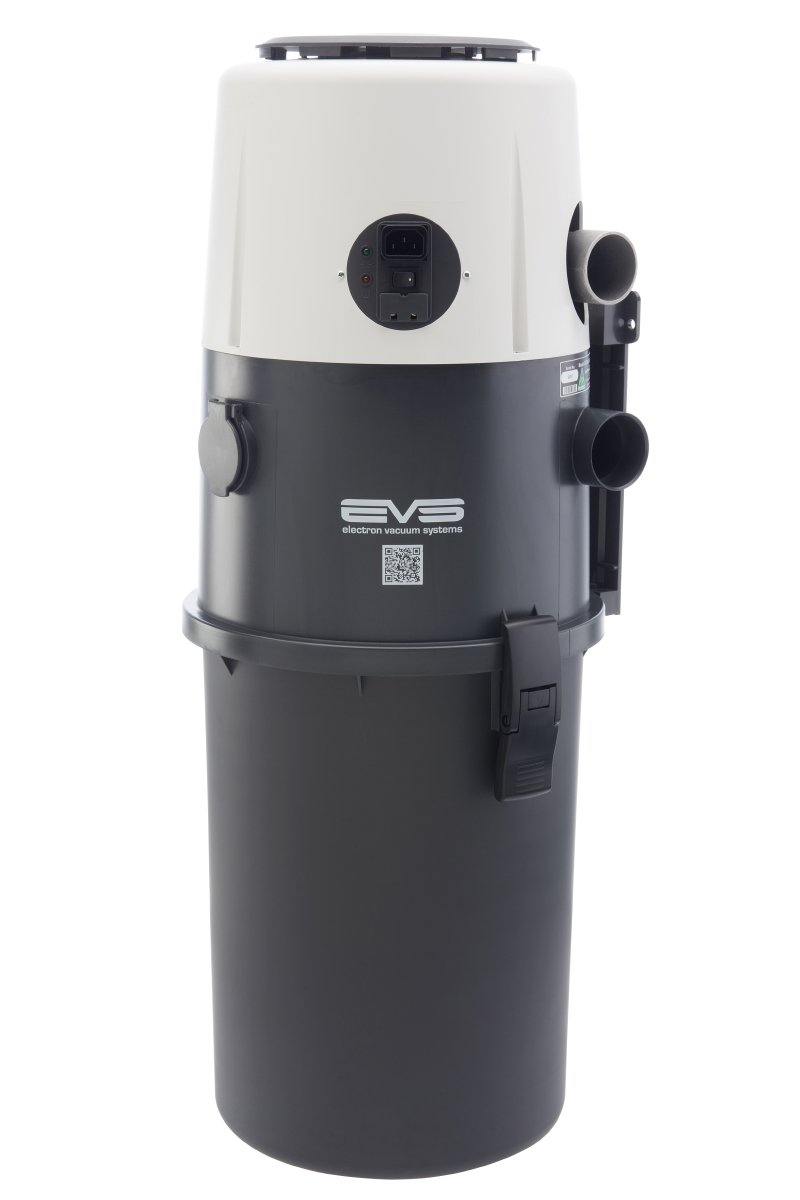

Electron EVS2808 Bagless Ducted Vacuum Unit

SKU: EVS2808
$895.00 $1,100.00


The Electron EVS2808 Series 2000 Bagless Ducted Vacuum Power Unit"the heart of the cleaning system" is constructed only with quality materials and workmanship, assuring years of trouble free vacuuming.

This high performance ducted vacuum unit with great warranty is ideal for new larger homes! Or to upgrade your old ducted vacuum machine ... if you want lots of suction at a great price! Suitable replacement/upgrade for EL2000, EDP2404, EVS2404, EDP2606 and EVS2606.

Recommended applications:  375 to 550 sqm house with 5 to 7 wall inlets.

Power Unit Features:

  • Injected molded from high impact, high temperatures ABS polycarbonate and polypropylene plastics,

      - Provides greater strength and durability
      - Will not dent and will last a house time
      - Rust and Corrosion proff
      - Excellent for areas where there is excessive humidity and ideal for coastal areas

  • Right & Left Entry points for connection of ducting pipe to unit.
  • Cyclonic Filtration System utilising HFPC filter for added motor protection.
  • Also offering Dual Filtration Compatibility; allowing optional Disposable Filter bag to be fitted if required with Bag Conversion Kit.
  • Large capacity dirt receptacle easily emptied by releasing two clamping latches that provide a hermetic vacuum seal between motor base housing and dirt receptacle.
  • Single printed circuit board control module complete with:

      - ON/OFF switch for operating inlet point on power unit
      - Terminals for extra low voltage remote connections for inlet points inside house
      - IEC type socket and lead for power mains connection
      - Dual LED technology status indicators for visual standby and operating modes

  • Manufactured to meet with all relevant Electrical Safety Standards in Australia and complies with the EMC emission standard AS/NZS 1044. Power units are all marked with the approved marking,  logo, and registration number N1461.
  • Powered by High Efficiency 2 Stage 183mm Turbine Tangential By-pass Ametek Lamb Electric Professional grade vacuum motors.
  • Tangential discharge of outgoing air with Silencer fitted for exhaust noise reduction and allows for venting to outside for 100% filtration.
  System Data
Air Watt 700
Input Power 1800 Watt
Voltage 240 VAC
Sealed Vacuum (Water Lift) 3480 mm
Air Flow at 48mm diam. pipe 56 Litre/second
Noise Level at 3 metres dBA
Dirt Capacity Litres
Unit Type Bagless
Filtration Cartridge Filter
Replament Filter Part #1185
Dimensions 815 x 310 mm
Weight 15 Kg
  Motor Data
Fan Stages 2
Fan Diameter 183 mm
Motor Speed at 19mm diam. pipe 21500 RPM
Approx. Motor Brush Life 800 hours
Motor Type Tangential Bypass
Manufacturer Ametek Lamb
  Recommended Applications
House Size 550 M2
Maximum Pipe Run 70 Meter
Number of Inlets 7
Motor Warranty 2 + 3 year
Other Electrics 1 year
Due to continuing research in power and energy saving technology, specifications are subject to change without notice.

Note: Muffler is sold separately, not included in this unit.
