AstroVac DL1500B Deluxe Ducted Vacuum

SKU: 1023
$670.00

QTY:

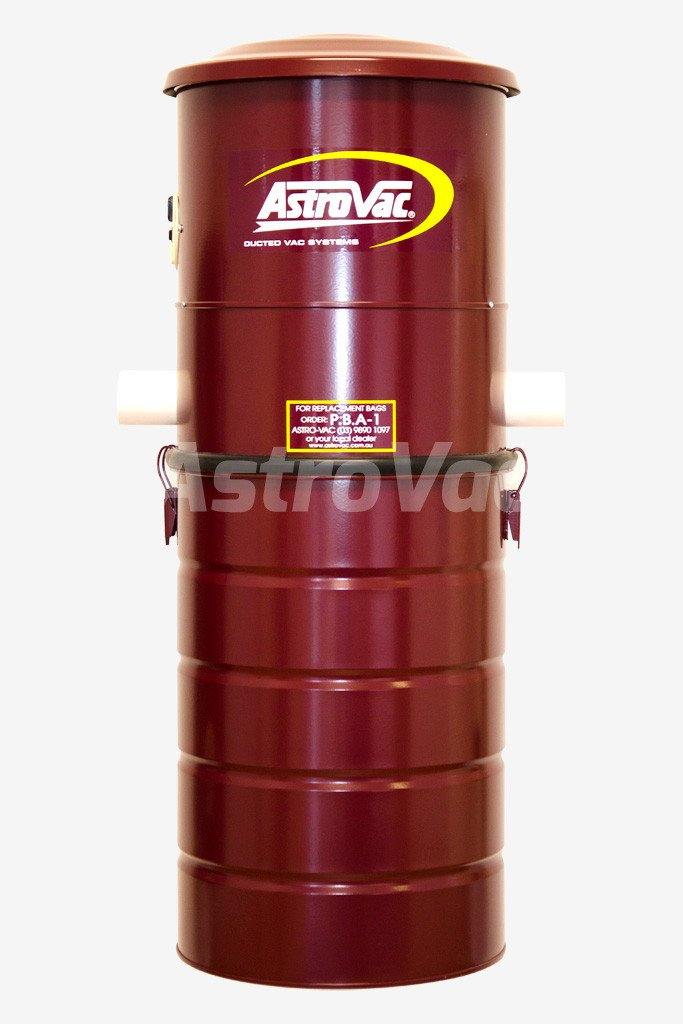

AstroVac DL1500B deluxe ducted vacuum power unit. It is a perfect upgrade for the obsolete DL1200B unit. DL1500B will deliver stronger and better performance due to the 3-stage motor used. 3-stage motors produce higher vacuum than commonly used 2-stage motors. This unit has the same physical dimensions and appearance as the predecessor. Suitable for medium size houses.

Features:
1.  Powdercoated galvanized metal ducted vacuum unit
     - Provides greater strength and durability
     - Better heat dissipation, prevents motor and other components from overheating
2.  High performance 145mm triple stage tangential motor
     - Delivers higher vacuum than standard double stage or single stage motors
     - Better air separation, hot air separated and exhausted out of the unit
3.  Use of disposable filter bags
     - Maintains high suction
     - No dirty filter or bags to clean
     - Easy to empty - bin simply unclips from top half of unit allowing bag to be removed with no mess
     - Does not exhaust dust back into the garage
4.  Patented Astro-Airliner design
     - Higher efficiency
     - Improves air flow
     - Guarantees longer motor life
5.  Right & left entry points for connection of ducting pipe to unit
6.  Efficient space saving design, unit can be mounted higher on wall than traditional ducted vacuum units
7.  Provision for muffler to reduce noise level
8.  Provision for utility/garage inlet
9.  Single printed circuit board control module complete with:
     - On/off switch for operating inlet point on power unit
     - Terminals for extra low voltage remote connections for inlet points inside house
     - IEC type socket and lead for power mains connection
     - Dual LED technology status indicators for visual standby and operating models
10.  EMI compliant to AS/NZS 1044
11.  Australian made and owned company

Specifications:
  System Data
Air Watt 550
Input Power 1500 Watt
Voltage 240 VAC
Sealed Vacuum (Water Lift) 3175 mm
Air Flow at 48mm diam. pipe 52 Litre/second
Noise Level at 3 metres 67 dBA
Dirt Capacity 30 Litres
Unit Type Deluxe
Filtration Paper Bag
Replament Bag Number PBA1
Dimensions 860 x 320 mm
Weight 17 Kg
  Motor Data
Fan Stages 3
Fan Diameter 145 mm
Motor Speed 22000 RPM
Approx. Motor Brush Life 400 hours
Motor Type Tangential Bypass
Manufacturer Ametek Italia
  Recommended Applications
House Size up to 400 M2
Maximum Pipe Run 45 Meter
Number of Inlets up to 5
  Warranty
Motor Warranty 2 years
Other Electrics 1 year
Due to continuing research in power and energy saving technology, specifications are subject to change without notice.
