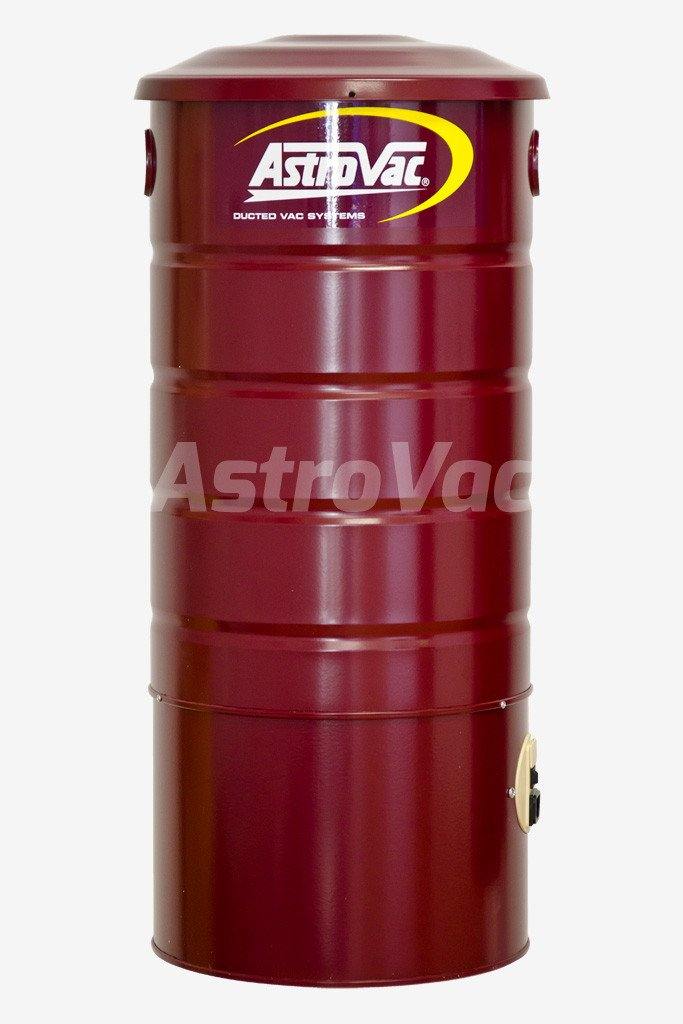

AstroVac CL1500L Compact Ducted Vacuum

SKU: CL1500L


AstroVac CL1500L compact ducted vacuum power unit. A strong compact power unit, powered with "3-stage" 1500W vacuum motor. 3-stage motors produce higher vacuum than commonly used 2-stage motors, suitable for medium size homes.

Recommended applications: approx. 225 sqm house with 3 wall inlets.

1.  Powdercoated galvanized metal ducted vacuum unit
     - Provides greater strength and durability
     - Better heat dissipation, prevents motor and other components from overheating
2.  High performance 145mm triple stage bypass tangential motor
     - Delivers higher vacuum than standard double stage or single stage motors
     - Better air separation, hot air separated and exhausted out of the unit
3.  Use of disposable filter bags
     - Maintains high suction
     - No dirty filter or bags to clean
     - Easy to empty - simply lift lid from top of the unit allowing bag to be removed with no mess
     - Does not exhaust dust back into the garage
4.  Patented Astro-Airliner design
     - Higher efficiency
     - Improves air flow
     - Guarantees longer motor life
5.  Right OR left entry points for connection of ducting pipe to unit
6.  Compact space saving design, making unit perfect for smaller townhouses and units
7.  Provision for muffler to reduce noise level
8.  Provision for utility/garage inlet
9.  Single printed circuit board control module complete with:
     - On/off switch for operating inlet point on power unit
     - Terminals for extra low voltage remote connections for inlet points inside house
     - IEC type socket and lead for power mains connection
     - Dual LED technology status indicators for visual standby and operating models
10.  EMI compliant to AS/NZS 1044
11. Australian made and owned company

  System Data
Air Watt 500
Input Power 1500 Watt
Voltage 240 VAC
Sealed Vacuum (Water Lift) 3175 mm
Air Flow at 48mm diam. pipe 47 Litre/second
Noise Level at 3 metres 67 dBA
Dirt Capacity 28 Litres
Unit Type Compact
Filtration Paper Bag
Replament Bag Number PBA1
Dimensions 695 x 320 mm
Weight 15 Kg
  Motor Data
Fan Stages 3
Fan Diameter 145 mm
Motor Speed 22000 RPM
Approx. Motor Brush Life 400 hours
Motor Type Tangential Bypass
Manufacturer Ametek Italia
  Recommended Applications
House Size up to 350 M2
Maximum Pipe Run 40 Meter
Number of Inlets up to 5
Motor Warranty 2 years
Other Electrics 1 year
Due to continuing research in power and energy saving technology, specifications are subject to change without notice.
