AMETEK 1400W Tangential Ducted Vacuum Motor #115684

SKU: 1845
$380.00 $440.00

QTY:

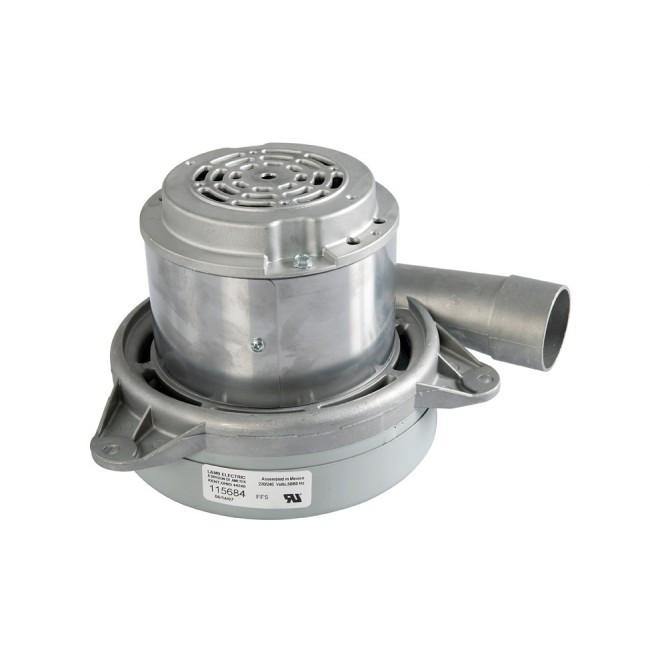

Genuine AMETEK Lamb Electric 115684 ducted vacuum cleaner motor, 1400 Watt 220-240V 50/60 Hz 2-Stage 183mm diameter tangential bypass discharge.

Specifications:

  • Motor Type: Bypass
  • Discharge: Tangential
  • Bearings: Double Ball Bearing
  • Sealed Vacuum: 110 inches
  • Maximum Air Flow: 97.8 CFM
  • Motor Speed: 16,005 RPM
  • Uses motor brushes Part #1845C

Compatible with the following Brands & Models:

  • AstroVac: DL1400B, SSL2800L (2 motors required)
  • AussieVac: AV1400, AV2800 (2 motors required)
  • ElectronVac: EVS2606, EDP2606, EL2000
  • MaxiVac: various models
  • Premier Clean: NV-200, PC-200
  • Valet: V2P, V150, V250, V350, VL200, VB150, V130
  • Vacumaid: P150, Husky

Approximate dimensions:

  • Height: 155mm
  • Base height: 65mm
  • Diameter: 183mm

Note:
Ametek motor 115684, replaces motor 116717 and motor 117157
